Polypropylene tray laser coding

Polypropylene tray laser coding

29/05/2020

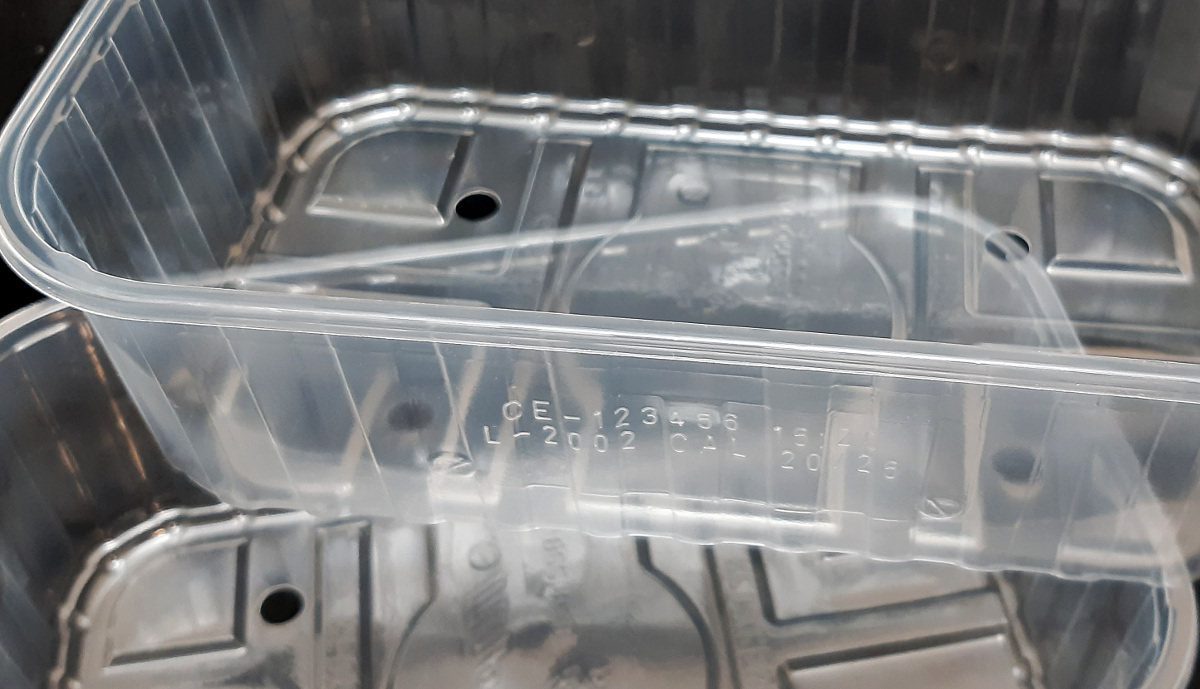

Polypropylene is a type of thermoplastic that, thanks to its strength and light weight properties, is increasingly used in various types of applications, especially in the food industry. In fact, polypropylene is a versatile and fully recyclable plastic, which means that it is being used as a substitute for other not-so-recyclable plastics. One such case is fresh fruit trays in supermarkets.

These types of transparent plastics are coded with CO2 systems that, although they do not generate a contrasting mark, make information highly visible due to the raised relief generated when penetrating the substrate.

However, when a fast marking is needed due to high production rates, the wavelength choice of the CO2 system is key in order to achieve an optimal result. It is important to mention that the absorption rate of polypropylene at a wavelength of 10.2 μm is four times higher than that of 10.6 μm, which is the standard wavelength of a CO2 laser.

With the SPA CF 30 P system, we can code the polypropylene trays with 2 lines of text of 14 characters each at a rate of 60 m/min, while if we use the standard wavelength of the CB systems, the maximum speed would be 15 m/min, losing production capacity and efficiency.

Technical information

  • Laser: SPA CF 30 P
  • Lens: 100 x100 mm.
  • Market: Food
  • Application type: Coding
  • Product: Trays
  • Material: Polypropylene
  • Marking type: Dynamic
  • Line speed: 60 m/min

Polypropylene tray laser coding

If you need more information about polypropylene tray laser coding, don’t hesitate to contact us.
