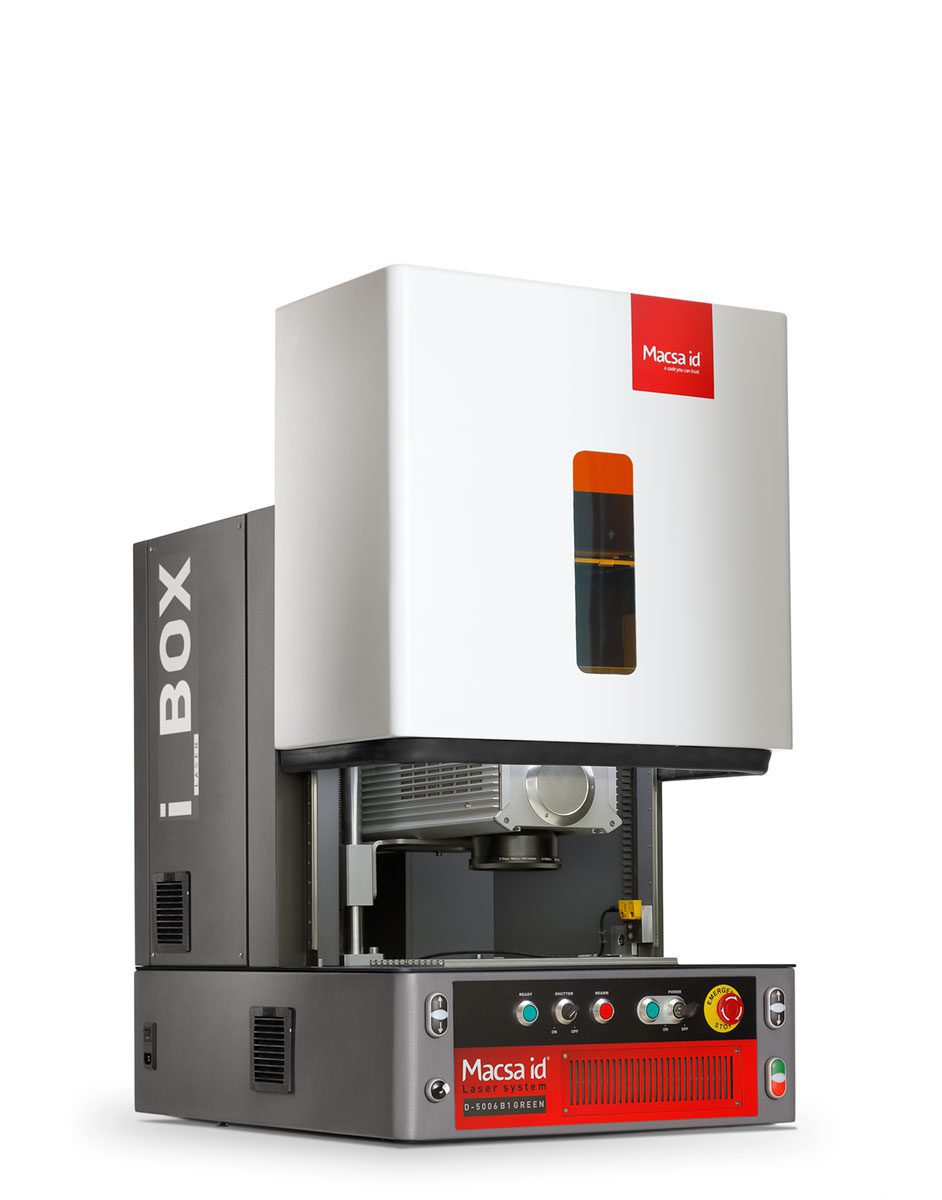

The iLaserBox 600 is a compact, enclosed laser marking workstation for direct part marking, traceability and controlled semi-automatic industrial applications.
It combines the laser source, protected marking area, part handling and positioning functions in one configurable system. This makes it a practical solution for manufacturers that need permanent identification on static parts, small batches or selected integrated processes.
Configure the iLaserBox 600 around the real component, material, geometry, marking area, code content and required cycle time.
Use the iLaserBox 600 to mark permanent information directly onto suitable components, without applying labels or transferring ink at the marking point.
Typical marking content includes:
The final mark depends on the material, colour, coating, surface finish, code size, required contrast and selected laser technology. For this reason, Macsa id assesses representative parts before defining the workstation configuration.
Different materials require different laser wavelengths and marking parameters. The iLaserBox 600 can be configured with compatible fibre, CO₂, DPSS, Green or UV laser technologies.
This flexibility allows the workstation to be assessed for selected metals, engineering plastics, coated parts and other technical components.
Our team defines the most suitable laser source, optics and process settings after testing the actual part. This helps validate code contrast, legibility, marking quality and cycle time before implementation.
The iLaserBox 600 provides an enclosed working area for laser marking. When correctly configured, installed and operated in accordance with the supplied instructions, it supports Class 1 laser-safe operation.
A large viewing window allows operators to monitor the process while maintaining a controlled marking environment.
The motorised wraparound door provides three-sided access to the marking area. This helps operators load, unload and position parts efficiently during semi-manual marking processes.
For selected oversized-part applications, an optional safety override can be specified as part of the final workstation configuration.
The programmable Z-axis supports automatic focal-distance adjustment for components with different heights. It helps improve positioning consistency, simplify changeovers and maintain accurate focus across different part formats.
The iLaserBox 600 is available with the following marking-field options:
The most suitable lens depends on the required code size, level of detail, working distance and component geometry.
An optional programmable rotary axis can be added for cylindrical or curved components. This makes the workstation suitable for applications that require marking around a circumference or at multiple positions on a part.
The iLaserBox 600 can support direct marking projects in sectors including:
Whether the requirement is a durable serial number, a readable 2D code or a detailed logo, the workstation is configured around the required marking result and production workflow.
A successful laser-marking project starts with the real component.
Send Macsa id a representative sample together with the material details, required code content, marking position, target cycle time and production conditions. Our specialists will assess the suitable laser technology, lens, handling configuration and expected marking result.
