D-5000 DUO GREEN Series

Green laser marking for plastics with the D-5000 DUO GREEN Series helps manufacturers create high-contrast codes, texts and graphics directly on suitable plastic parts. Its 532 nm DPSS green laser technology is designed for applications where mark quality and controlled thermal impact are particularly important.

The system can mark serial numbers, batch data, references, logos, barcodes, QR codes and DataMatrix codes. Each solution is configured around the material, pigment, surface finish, required contrast, production speed and code-quality requirements.

532 nm DPSS laser technology for plastic marking

The D-5000 DUO GREEN uses a 532 nm green DPSS laser source with short pulses and high peak power. This combination helps control how laser energy interacts with suitable technical plastics and delicate substrates, supporting clear marking with a reduced thermal effect compared with less suitable laser configurations.

Not every polymer reacts in the same way. Material grade, additives, colour, texture and geometry can all affect contrast, definition and marking resistance. For this reason, Macsa id assesses representative samples before recommending the final laser configuration.

Key features of the D-5000 DUO GREEN Series

• 532 nm DPSS green laser technology.
• Short-pulse, high-peak-power marking.
• 1.5 W, 5 W and 10 W configurations.
• Air-cooled operation and single-phase power input.
• DUO architecture for variable data and laser control.
• Integration in automated lines or iLaserBox workstations.
• PS option available for applications requiring shorter pulses and higher peak power.

High-contrast variable data for traceability

The D-5000 DUO GREEN Series enables fixed and variable marking directly on the product, without transferring ink, ribbon or solvent to the surface. It is suitable for identification and traceability applications such as:

• Serial numbers, references, lots and dates.
• QR codes, DataMatrix codes and 1D barcodes.
• Logos, pictograms and technical information.
• Product identification for quality control, servicing and after-sales processes.

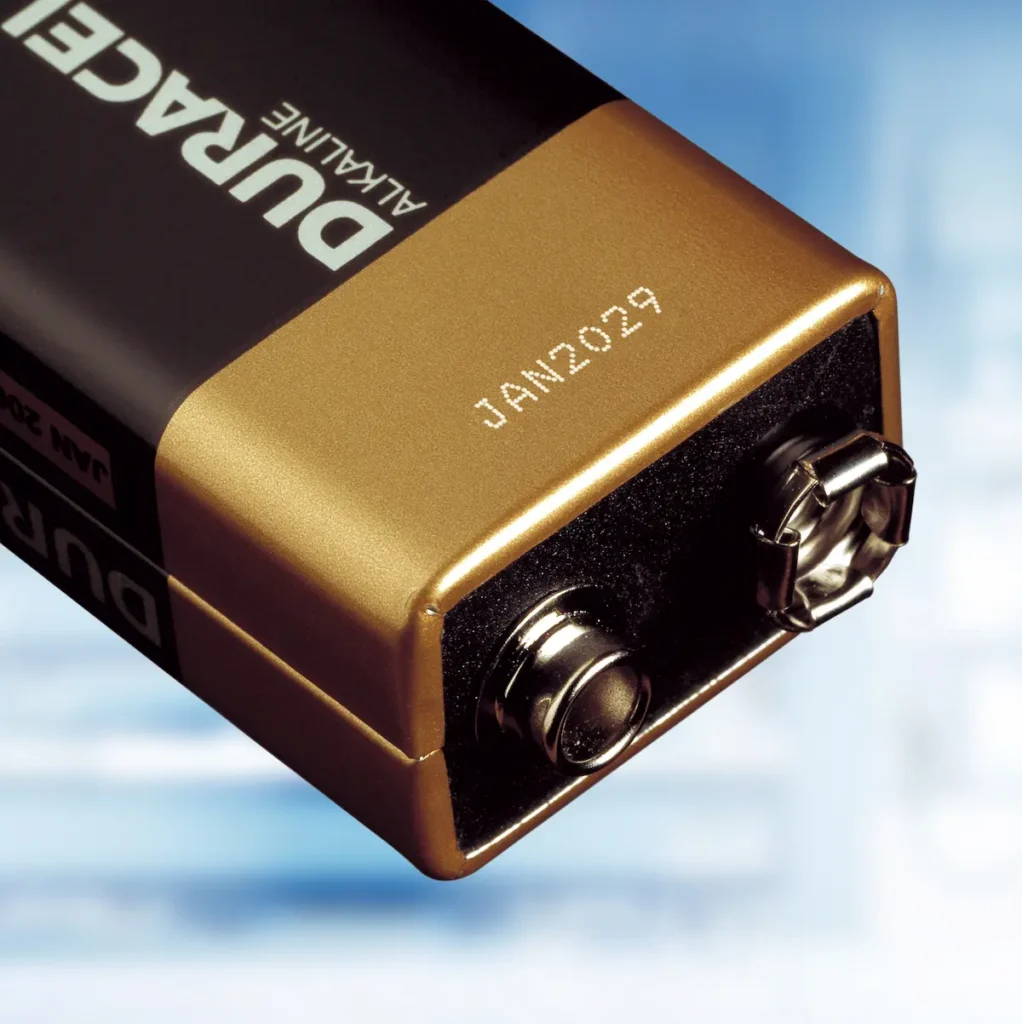

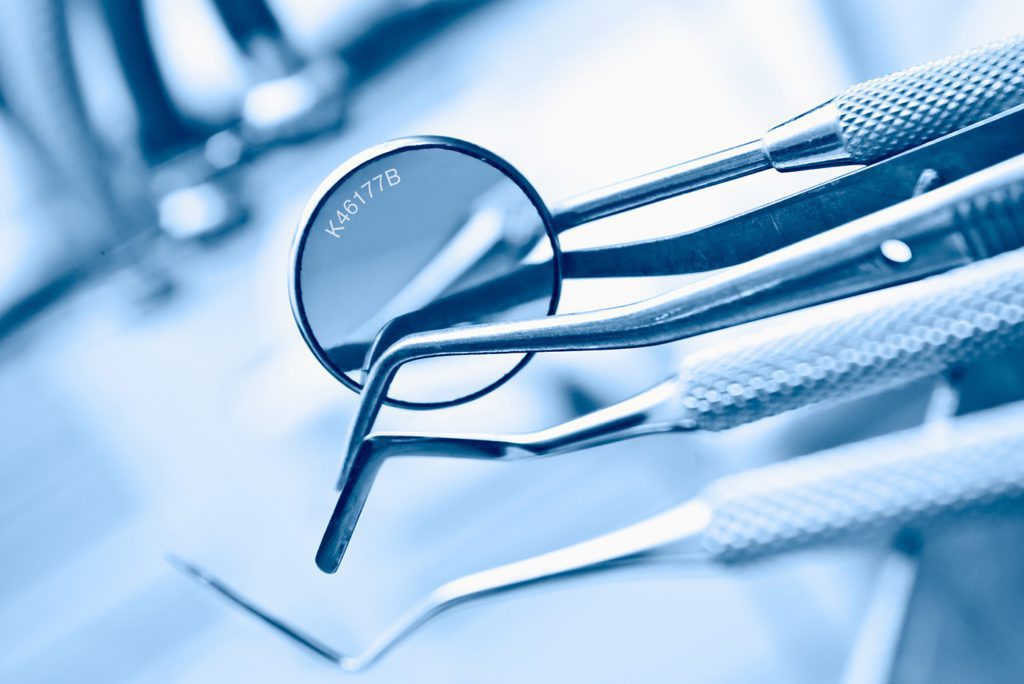

• Component marking in electronics, automotive, medical and consumer-product applications.

Macsa id’s DUO technology separates data processing from laser control, helping maintain marking quality when variable information is generated during production.

Integration on production lines or in workstations

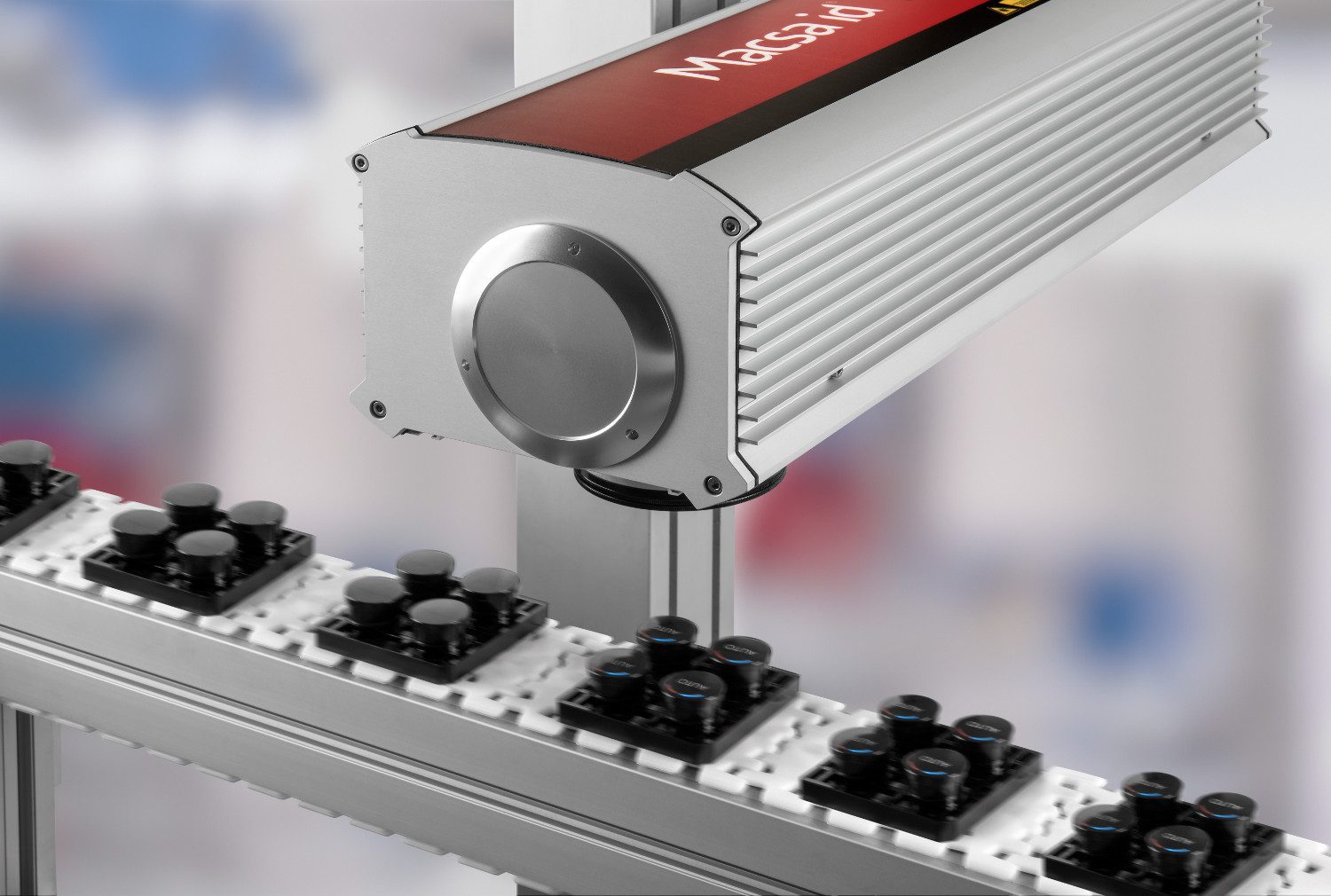

The compact, air-cooled design supports integration into automated production environments. It can be configured for dynamic marking processes where products or components move through the line.

For static parts, small batches or semi-automatic operations, the D-5000 DUO GREEN can also be integrated into an iLaserBox laser marking workstation. This gives manufacturers flexibility to select the most suitable loading method, safety solution and cycle time for their process.

When is a green laser the right choice?

A green laser is not a universal replacement for fibre or UV technology. The D-5000 DUO GREEN is particularly relevant when a suitable plastic application requires high definition and careful control of thermal impact.

The right wavelength, optics and parameters should be selected after testing the actual part. Macsa id can compare the D-5000 DUO GREEN with other industrial laser marking systems to recommend the most suitable solution for the required result.
