3D Laser systems for product marking and coding

Figure 1: Object marked with a 3D laser system



Laser marking systems usually work with an X-Y scanner system for marking on flat 2D surfaces, but what happens if we want to mark a product in 3D or we want to mark the product at different heights? We will need to control a third axis; the Z-axis.

Today, thanks to the expansion of laser marking and the wide range of products that can be marked with this technology, the introduction of 3D laser marking is already an established field of study and many customers require this functionality to mark their products.



3D Laser systems for product marking and coding

TABLE OF CONTENTS

1. Basic concepts

2. 3D Technology

3. Other Z-axis control technology

4. Creation of 3D messages with Marca



1. Basic concepts

Before we get into the explanation of how 3D laser printing works, the basic concepts and working principles of a 2D laser should be discussed.

The method that is typically used in laser systems utilizes an optical system of galvanometric scanners. Because the laser beam has no mass, limitations on speed and accuracy are imposed by the movements of the mirrors that guide the laser beam.

Beam control is achieved using a set of two X-Y mirrors connected via an axis to the galvanometer scanners, which is in turn controlled by drivers receiving signals from the laser CPU. This provides a pair of polar coordinates converted to Cartesian coordinates by positioning the laser beam in an X-Y plane.

The beam exits through the opening of the laser tube and is directed at the marking surface via the mirrors and focal lens.

Each movement of the mirrors corresponds to one of the axes (X or Y) and is positioned according to the X-Y coordinates of each of the points of the printed message.

These galvanometric scanners have built-in mirrors that reflect the laser beam onto the marking surfaces. The mirrors have a high reflectivity index at the particular laser wavelength to provide maximum beam power.

In the case of dynamic marking, the mirrors follow the product as it moves down the production line while the message is being marked.

3D Laser systems for product marking and coding

Figure 2: Example of an optical system with galvanometer scanners



2. 3D technology

For 3D marking currently there are different technologies, but these can be divided into 2 main groups:



Displacement lenses

These optical systems in 3D laser marking heads entail the introduction of a new displaceable lens in addition to one, two or more fixed focal lenses. These lenses are placed in the optical path between the laser tube aperture and the X-Y galvanometric scanners.

The usual operation of these systems is as follows:

The laser beam exits the laser tube aperture and hits the displaceable lens. The function of this lens is to shift the laser focal spot around the focal plane by moving along an optical axis. This causes a change in the divergence angle of the laser beam.

Once the laser beam has passed through the displaceable lens, it passes through one, two or more focal lenses that deal with focusing. It then reaches the laser deflection unit, which is where the X and Y galvanometer scanners are located. As already explained above, the task of the scanners is to guide the laser beam on the X-Y plane.

If we focus on the 3D part of the optical path, the part with the new lenses, we can say that when the movable lens approaches the fixed lens, the focal length increases. Conversely, when the displaceable lens moves away from the fixed lens, the focal length decreases.

To achieve high performance 3D marking, in addition to having a system with the components explained above, we will need the linear lens shift system to have a number of characteristics.

For example, the lens displacement speed performance has to be very high, since the 3 axes (X, Y, Z) have to be coordinated to achieve perfect 3D marking.

To attain good performance for linear lens displacement systems, different technologies have been explored. A few of these are explained below:

  • Galvanometer (Rotary Motor).

It works in the same way as galvanometers that control the motion of X-Y scanners. A galvanometer is based on and works like an electric motor.

Displacement systems can have 2 galvanometers, one on each side for higher speed performance.



  • Linear actuator (Linear motor)

These are motors that base their operation on the same physical principle as traditional rotary motors, but instead of having a rotary motion they have a linear motion due to the arrangement of their components.



  • Piezoelectric moto

These motors are considered linear but follow the piezoelectric principle in operation. This principle uses the deformation experienced in some materials when an electric current is applied to them. This deformation is converted into an ultrasonic vibration that moves the motor forwards/backwards.



  • Voice coil motor

This motor is based on a copper coil energized by an electric current and placed inside a magnetic field generated by permanent magnets. The force generated by the coil is proportional to the magnetic field and to the direction and magnitude of the electric field. As there are no components in contact, there is no wear or friction and it is suitable for high speed applications.



All these linear lens displacement systems will normally be controlled by drivers connected to the central CPU of the laser system.

In addition to the above, depending on the application of the 3D laser marking system, an F-Theta lens may or may not be included. The function of these lenses is to ensure the same focal length over the entire marking area.



Focus-tunable lens

The 3D technology we are going to explain below is based on physical properties to control the Z-axis.

The electrically focus-tunable lens is a flexible lens that can change its shape. This lens consists of a polymer membrane surrounded on one side by a type of liquid and on the other side by air. Finally, it is encapsulated by protective glass.

The lens works as follows: If the pressure difference between liquid and air is altered by means of an electromagnetic actuator, the radius of curvature of the membrane can change.

In the marking head, these tunable lenses are positioned between the laser tube aperture and the X-Y galvanometer scanners. Their function in the optical path is the same as that of the displaceable lens, i.e. to control and change the position of the Zaxis.

As in the previous case, depending on the application, an F-Theta lens may or may not be added at the end of the optical path.

If it is added, its function is to ensure the smoothing of the marking area and the function of the tunable lens is to change the divergence of the laser beam to achieve a focus shift in the Z-axis.

If the F-Theta lens is not added, the two functions discussed above must be performed by the tunable lens.

The tunable lens is controlled by a driver connected to the laser system’s CPU and allows real-time control in conjunction with the X-Y scanners to achieve perfect 3D marking.



3. Other Z-Axis Control technology

Apart from laser marking for 3D objects, it is sometimes necessary to control the Z-axis but at lower output, for example when marking an object with different planes at different heights.

In this application the Z-axis has to go up/down, but it does not have to do it in coordination/real time with the X-Y scanners. In other words, the Z-axis does not have to go as fast as in 3D laser marking systems.

For these applications there is also a wide range of technology, but we will describe the most commonly used ones:



Focus Shifter

The basic principle of this technology is the same as in 3D displaceable lens laser systems. In fact, the operation and arrangement of the optical components inside the marking head is practically the same.

The big difference between these two technologies is, as mentioned above, the performance it gives, so the displaceable lens systems for focus shifters normally use a single galvanometer because the application speeds are much lower.



External Z-axis

This technology is different from that described above. As the name suggests, the Z-axis is controlled externally, i.e. outside the marking head of the laser system.

This external axis can be implemented in two ways: either an elevator can be positioned to raise/lower the laser or an elevator can be positioned to raise/lower the marking plane and thus the product in question.

In this application, the laser focal length is always the same since the laser beam is static in the Z-axis, but it is the external Z-axis elevator that moves up/down.

Many laser applications have an external elevator to properly adjust the focal length manually using up/down buttons.

For more precise applications, the elevator may be controlled by a servo motor connected directly to the laser CPU to receive position signals.



4. Creation of 3D messages with marca

Marca is Macsa ID‘s own message design software.

The software in question has an option for editing and designing messages for 3D shapes.

The 3D message design is very similar to the 2D edition. The message to be marked is created with the standard software editor. As in 2D message editing, you can add shapes, text, user messages, images, date or time fields…

The difference comes now. In the standard case, when we created the message, we could already save it or print it directly without taking any further steps. In the case of 3D design, once the message is created in the standard Marca editor, we must map the 2D objects created to the surface of the 3D objects. For this reason, first of all, the 3D objects will have to be imported/created in the software.

To edit and design a message on a 3D object, follow the steps below:

  1. Once we have the Marca software open we have to press the  button.
  2. A pop-up window will appear with an options bar on the right and a central screen with an X-Y plane. If we zoom out the screen with the mouse wheel, we can see a square with a white circle that represents the laser and can serve as a reference point.
  3. To add a 3D object, we have to select the desired geometric figure (sphere, cone, plane, cylinder…) from the drop-down list at the top right of the pop-up window and press the “Add” button.
    3D Laser systems for product marking and coding

    Figure 3: 3D window in Marca with some selected shapes.



  4. In the toolbar we can see the created shapes and we can view and change their properties.
  5. In the standard 2D Brand editor we have to design the message we want to mark on the 3D figure. Once the message is created, if we go inside the 3D popup window, we will see that the message appears in the z = 0 plane. That is, the message is not yet mapped on the figure.

    Figure 4: 3D window with a message on the z = 0 plane

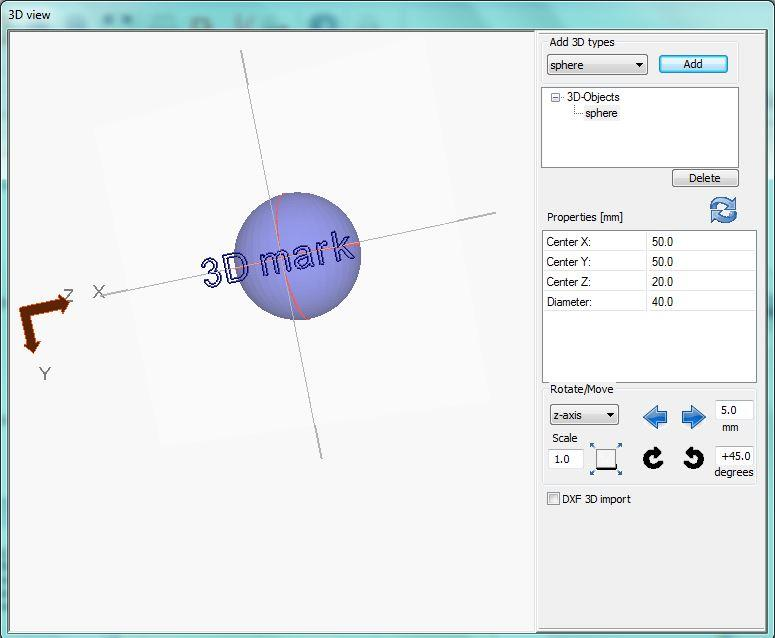

  6. Next, we must map the 2D message to the 3D figure. Once completed, we can see how the message is mapped on its surface in the 3D window.

Figure 5: 3D window with different messages mapped on the 3D objects



In addition to the range of geometric shapes in the 3D window, it is also possible to import your own STL files (3D shapes) to perfectly map the marking onto the surface of the product.

3D Laser systems for product marking and coding

Figure 6: Message created in the standard editor and 3D window with the message mapped onto an imported 3D object
